		PTFE Graphite Packing Series
		PTFE Graphite Fibre Packing PTFE Graphite Fibre Packing With Oil
		PTFE Graphite Filament Yarn Braided Packing PTFE Graphite Packing Inter Aramide
		PTFE Graphite Packing Aramide Corner

PTFE Packing With Kevlar Fibre Corner

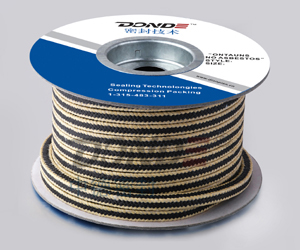

Item No.:ZD-P1420

Description:PTFE graphite packing is high- quality combination of PTFE with incorporated graphite and reinforced edges from aramide yarn.PTFE graphite packing aramide corners is used to prevent gap extrusions within the high pressure and temperature. PTFE graphite packing aramide corners is with perfect sliding velocity and thermal conductivity. This gland packing is recommended for piston pumps long service live. PTFE graphite packing aramide corners can be used to seal water.Sewage water,hot water.It can also be used to seal oils,greases,gases.,weak acids and alkaline solutions,abrasive media.

Main Specification:

Temperature	-100℃~+260℃
Pressure)	35MPa
PH Range)	2-13
Linear Speed)	25M/S
Size	33mm-6060mm（or as request）

How to Order：

Item	Order Code
PTFE Graphite Fibre Packing（12% carbon）	ZD-P1210
PTFE Graphite Fibre Packing（25% carbon）	ZD-P1211
PTFE Graphite Fibre Packing With Oil	ZD-P1214
PTFE Graphite Filament Yarn Braided Packing	ZD-P1215
PTFE Packing With Kevlar Fibre Corner	ZD-P1420
PTFE Graphite Packing Inter Aramide	ZD-P1421

Parameter:

INCH ″	1/8	5/32	3/16	1/4	5/16	3/8	7/16	1/2	9/16	5/8	11/16	3/4	7/8	1
MM	3	4	5	6	8	10	11	12	14	16	18	20	22	25
M / KG	50	40	27	15	10	7.5	5.6	4.3	3.1	2.8	2.4	1.9	1.4	1.1

For more information,please contact with us directly,thanks！
