Asbestos

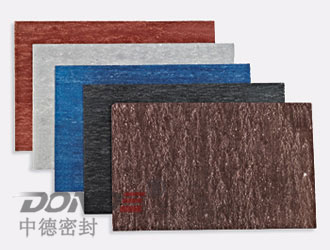

Rubber Sheet/Oil-proof Asbestos Sheet
Item No.:ZD-GS1300/ZD-GS1310
Description:Asbestos
rubber sheet (asbestos joint sheet) is made of excellent asbestos,
rubber and other chemical materials.It is formed by rolling after
special mix-ture treatment .The thickness of asbestos rubber sheet not
larger than 0.5 to 5.0mm can be supplied.It is mainly for such media as
water and vapor.It is applicable to sealing and heat-insulation.Asbestos
rubber sheet is also used in the industries as machinery, automobiles,
farm, machinery and petroleum.Asbestos rubber sheet can be reinforced
with tin steel, copper, SS304 etc. wire mesh insertion.
Main Specification:
|
Item |
asbestos sheet common |
asbestos sheet oil-proof |
|
Tensile strength(Mpa) |
19 |
2.10~2.30 |
|
Compressibility(%) |
12±5 |
112±5 |
|
Recovery(%) |
45 |
50 |
|
Density(g/cm3) |
1.6-2.0 |
1.6-2.0 |
|
Maximum Service Temperature(℃) |
450 |
400 |
|
Maximum Service Pressure(Mpa) |
6.0 |
4.0 |
|
Common Size(mm) |
Width：1500,1350; Length：1000,1350mm,2000,4000; Thickness：0.5-5 |
Grade of Asbestos Sheet:
|
Appellation |
Capability |
purpose |
|
XB450
ZD-GS1300 |
High Pressure |
Suitable for equipment mainly with mediums of
water , vapor, air, gas, alkali, ammonia, alcohol and inertia.
Temperature under 450°C, Working pressure under 6.0Mpa of
pressure, Tensile strength crosswise>=19.0MPa, compressibility:
7% ~17%, Aging coefficient>=0.9, rebound degree>=45%, stress
relaxation<=50%. |
|
XB350
ZD-GS1301 |
Middle Pressure |
Suitable for mediums of water, saturated
vapor, air, ammonia, alkali under 350°C，4.0Mpa of working
pressure. Tensile strength crosswise>=12.0MPa, compressibility:
7% ~17%, Aging coefficient>=0.9, rebound degree>=40%, stress
relaxation<=50%. |
|
XB200
ZD-GS1302 |
Low Pressure |
Suitable for mediums of water, saturated
vapor, air, under 200°C，1.5Mpa of working pressure, for steam
sealing, the working temperature is 2MPa to 3MPa. Tensile
strength crosswise>=6MPa, compressibility: 7% ~17%, Aging
coefficient>=0.9, rebound degree>=35%, stress relaxation<=50%.
|
NY150 (ZD-GS1310)
Oil Resistance
Suitable for kerosene, petro-chemical, used as joint material in the hot
oil medium.Tensile Strength Crosswise>=9.0MPa, Compressibility:
7%-17%.3# OIL FOR 5 HOURS: Tensile Strength Crosswise>=6.0MPa, oil
absorption<=22%.
NY250 (ZD-GS1310)
Oil Resistance
Max temperature: 250°C, Max Working pressure: 1.60MPa. Suitable for
sealing material as oil refine equipment, distillation pipeline flanges,
sealing joints of automobile, diesel engine and oil transportation
pipeline. Tensile Strength Crosswise>=11.0MPa, Compressibility:
7%-17%.3# OIL FOR 5 HOURS: Tensile Strength Crosswise>=7.0MPa, oil
absorption<=22%, thickness increase <=25%
NY300 (ZD-GS1311) Oil
Resistance
Max temperature: 150°C. Suitalbe for sealing joints material of aviation
engine kerosene, lubricating oil, fuel and air conditioning(cooling)
system. A. Immersion in 20# aviation lub oil for 5hours. Tensile
Strength Crosswise>=10.80, oil absorption<=23%, thickness
increased<=15%. B. Immersion in 75# oil or 3# for 5 hours: Tensile
Strength Crosswise>=7.90, oil absorption<=22%, thickness increased<=25%
NY400 (ZD-GS1312) Oil
Resistance
Max temperature: 400°C, Working Pressure<=4MPa, Compressibility 7%-17%.
, Stress Relaxation <=45%, Suitable as middle pressure sealing material
of hot oil, petroleum distillation, kerosene distillation and petroleum
cracking equipment. Also, they are usually used in the large aviation
engine and rocket. A. Immersion in 20# aviation lub oil for 5hours.
Tensile Strength Crosswise>=26.0, oil absorption<=9%, thickness
increased<=15%. B. Immersion in 75# oil or 3# for 5 hours: Tensile
Strength Crosswise>=14.7, oil absorption<=15%, thickness increased<=20%
|
|
|
|
|
