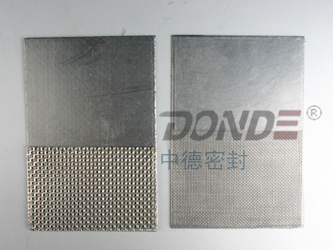

Reinforced(Tanged)
Graphite Sheet
Item No.:ZD-GS1110
Description:Reinforced
expanded graphite sheet is comprised of expanded graphite sheet and
various steel sheets such us tanged, flat or mesh. Reinforced
expanded graphite sheet has character of thermally stability, high
strength and no cold flow etc. Reinforced expanded graphite sheet is
an ideal material of all kinds of reinforced graphite gaskets,
engine heat gaskets etc.There are many kinds of reinforced expanded
graphite sheet.Such as reinforced expanded graphite sheet with
ss304/304L insert,reinforced expanded graphite sheet with ss316/316L
insert,Reinforced expanded graphite sheet with tinplate insert,ect.
Suitable Working Condition:：
|
Pressure |
20MPa |
|
Temperature |
200-600℃（in the air）
|
|
Production Standard |
JB/T6628-93 |
Routine Size:
|
Thickness（mm） |
width（mm） |
Length（m） |
|
Tanged Style |
Plain Metal Sheet |
<=1500 |
=<4 |
|
1.0~3.0 |
0.8~3.0 |
Main specification：
|
Reinforce Material |
Configuration |
Pressure(N/mm2) |
Temperature(℃) |
|
Oxidizing Condition |
Non
Oxidizing Condition |
|
Tanged CS Sheet
(Thickness: 0.2~0.25) |
 |
>=48 |
-10~450 |
-10~500 |
|
AISI304,316
Tanged
(Thickness:0.1~0.127) |
|
>=48 |
-240~450 |
-200~600 |
|
AISI304,316 Plain Sheet)
(Thickness: 0.05~0.1) |
 |
>=45 |
-240~450 |
-200~600 |
|
AISI304,316
Mesh |
 |
>=40 |
-240~450 |
-200~600 |
|
Reinforce Material |
Configuration |
Compressibility |
Recovery |
Sealing Constant(1.5mm)m1/hr |
|
N2 |
oil |
|
Tanged CS Sheet
(Thickness: 0.2~0.25) |
|
30~35 |
15~20 |
30 |
<0.5 |
|
AISI304,316
Tanged
(Thickness:0.1~0.127)
|
|
30~40 |
15~30 |
60 |
<0.5 |
|
AISI304,316 Plain Sheet)
(Thickness: 0.05~0.1) |
|
40~50 |
10~15 |
35 |
<0.5 |
|
AISI304,316 Mesh |
|
30~35 |
15~20 |
7000 |
58 |
The Content of Graphie Layer:
|
Item |
Unit |
Value |
|
Tolerance of Density |
g/cm3 |
-0.06~+0.06 |
|
Tolerance of Thickness |
mm |
-0.04~+0.04 |
|
C concentration |
% |
>=99 |
|
Tensile strength |
MPa |
4.5 |
|
Compressibility |
% |
>40 |
|
Recovery |
% |
>10 |
|
S concentration |
ppm |
<1100 |
|
Chlorine concentration |
ppm |
<45 |
Type Of Reinforced Graphite Sheet:
|
ZD-G1100 |
Tin-plate Tanged Graphite Sheet |
|
ZD-G1110 |
SS304 Tanged Graphite Sheet |
|
ZD-G1120 |
SS316 Tanged Graphite Sheet |
|
Others Can be supplied according to
customer's requirement. |
