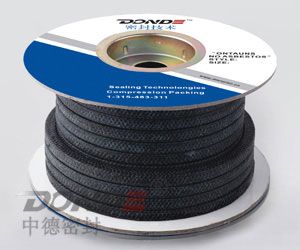

Carbon
Fibre Packing With Graphite Impregnated
Item No.:ZD-P1311
Description:Carbon
fiber packing with graphite is woven of strong carbon fiber after
softening treatment and impregnation with a mixture of fine graphite
powder and lubricant. Being strong, static and
heat-conductive, this material is widely used with revolving or
reciprocating pumps in which chemical corrosive media and particle
grains exist.
Main Specification:
|
Temperature |
-200℃~+600℃ |
|
Pressure |
5-25MPa |
|
PH Range |
0-14 |
|
Linear Speed |
0-25M/S |
|
Size |
3*3mm-60*60mm（or as request） |
How to Order：
|
Item |
Order Code |
|
Carbonized Fibre Braided Packing |
ZD-P1300 |
|
Carbonized
Fibre Braided Packing With Graphite |
ZD-P1301 |
|
High Strength
Carbon Fibre Brainded Packing |
ZD-P1310 |
|
Carbon
Fibre Packing With Graphite Impregnated |
ZD-P1311 |
|
Carbon
Fibre Packing Aramide Corner |
ZD-P1312 |
|
PTFE Fibre Braided
Packing With Carbon Fiber Corner |
ZD-P1350 |
For more information,please contact with
us directly,thanks！
|
