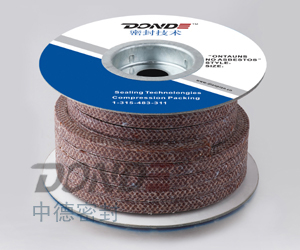

Abrasion Resistant Gland Packing
Item No.:ZD-P1021T
Description:Cabrasion
Resistant Gland Packing is made from kynol,a mew type of synthetic heat
stable fiber and each fiber is impregnated with PTFE dispersion,a
special break-in lube added.It suitable for moderate pump and valve
service.It's especially with perdect abrasion resistance.Not for
sulphuric or nitric acids or strong bases.
Main Specification:
|
Temperature |
-100℃~+250℃ |
|
Pressure |
8MPa(revolving)
20MPa(reciprocating) 25MPa(flange) |
|
PH range |
2-13 |
|
Linear speed |
0~15M/S |
|
Size |
3*3mm-60*60mm（or as request） |
How to Order：
|
Item |
Order Code |
|
High Temperature and High Pressure Flange
Sealing Packing |
ZD-P1010T |
|
Special Packing For High Pressure Steam
Pump |
ZD-P1011T |
|
Reciprocating Pump Gland Packing |
ZD-P1020T |
|
Abrasion Resistant Gland Packing |
ZD-P1021T |
|
Special Packing for Food and Pharmacy
Industry |
ZD-P1022T |
|
Gland Packing for Tanker Container |
ZD-P1041T |
For more information,please contact with
us directly,thanks！
|
