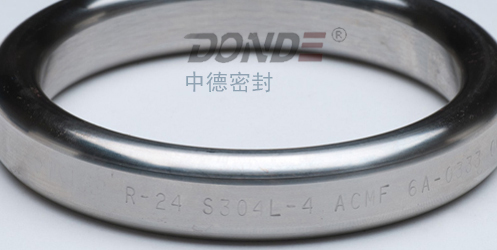

Note：The material of the oval ring jont gasket must be 15~20HB lower than the hardness of flange,and this kind of gaskets is non-recyclable.
|

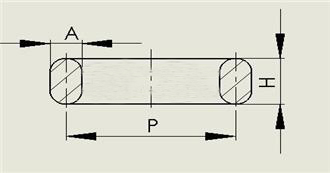

The cross section |
|
Mark |
Tolerance(mm) |
|
P |
±0.177 |
|
W |
±0.203 |
|
T |
±0.39 |
Available Material:
|
Material |
Maximum Hardness |
Temperature（ ℃ ） |
Abbreviations |
|
|
Brinell |
Rockwell“B”Grade |
|||
|
Soft Iron |
90 |
56 |
-60～500 |
D |
|
Low Carbon Steel |
120 |
68 |
-40～540 |
S |
|
SS304 |
160 |
83 |
-250～540 |
304 |
|
SS304L |
160 |
83 |
-250～540 |
304L |
|
SS316 |
160 |
83 |
-200～815 |
316 |
|
SS316L |
160 |
83 |
-200～815 |
316L |
|
SS321 |
160 |
83 |
-200～870 |
321 |
|
SS347 |
160 |
83 |
-200～870 |
347 |
|
SS410 |
170 |
86 |
-40～850 |
410 |
|
5Cr-0.5Mo |
130 |
|
-29～650 |
|
|
Copper |
80 |
|
-100～315 |
|
|
Aluminum |
35 |
|
-200～425 |
|
|
Inconel 600 |
150 |
|
-100～1095 |
|
|
Incoloy 825 |
150 |
|
-100～1095 |
|
|
Monel 400 |
150 |
|
-100～760 |
|
|
Titanium |
215 |
|
-200～540 |
|
|
Nickel 200 - |
110 |
|
200～760 |
|
|
Hastelloy B2 |
230 |
|
-100～1095 |
|
|
Hastelloy C276 |
210 |
|
-100～1095 |
|
Warning: Gasket materials should never be recommended when both the temperature and the pressure are at the maximums listed. Properties and applications shown are typical. No application should be undertaken by anyone without independent study and evaluation for suitability. Never use more than one gasket in one flange joint, and never reuse a gasket. Improper use or gasket selection could cause property damage and/or serious personal injury. The data reported is a compilation of field testing, field service reports and/or in-house testing. While the utmost care has gone into publishing the information contained herein, we assume no responsibility for errors. The information and specifications contained in this website are subject to change without notice. This revision cancels and obsoletes all previous editions.
